Four high pressure hose crimping machines give better assemblies

The high pressure hose crimping machines have many different types and styles. In the hydraulic hose crimper page, we have already introduced one type and we will offer the details of high pressure hose crimping machine in this page to give you more specific information. High pressure hose crimping machine is a kind of large-scale hose crimping machine, because the inner diameter of hose can be up to 150mm. Our high pressure hose crimping machine can be divided into five kinds: digital automation hose crimping machine, high pressure hose crimping machine (type C), high pressure hose crimping machine (type H), high pressure hose crimping machine (type M) and high pressure hose (4SP) crimping machine.

Digital Automation Hose Crimping Machine

Digital automation hose crimping machine is a kind of our new products. Its center of gravity is low, making it easy to operate. It is suitable for continuous operation and it is manufactured with large opening and passing ability, because it is mainly used for non-standard hose crimping. And its advantage is high repeated precision.

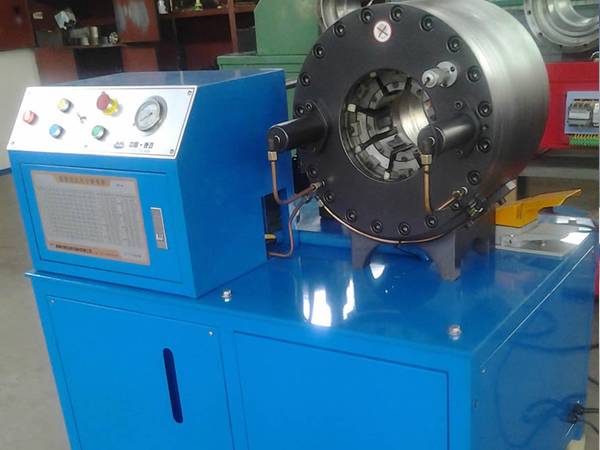

A blue digital automation high pressure hose crimping machine is on the ground.
Digital automation high pressure hose crimping machine.

The details of digital automation hose crimping machine:

  • Crimping force: 1490 T.
  • Crimping hose range: 1/8" - 4".
  • Opening without dies: 180 mm.
  • Opening: ±25 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V.
  • Motor: 5.5 kW.
  • Number of standard die set: 10.
  • Weight: 880 kg.
  • Overall size: 1050 mm × 700 mm × 1200 mm.

High Pressure Hose Crimping Machine (Type C)

High pressure hose crimping machine (type C) is easy to operate thanks to the resetting hydro-cylinder on the back. It is designed of base protective resin gasket to protect the working surface. It is equipped with self-filling oil cup, making the oil filling automatic and even. It can crimp high pressure hoses fast.

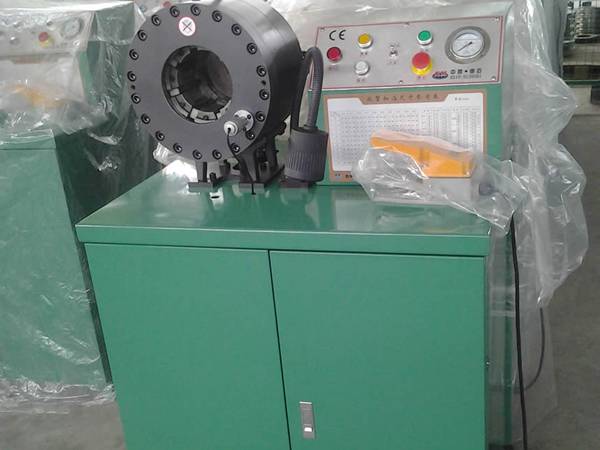

A green high pressure hose crimping machine (type C) is on the ground.
High pressure hose crimping machine (type C).

The details of high pressure hose crimping machine (type C):

  • Crimping force: 640 T.
  • Crimping hose range: 1/8" - 2".
  • Opening without dies: 124 mm.
  • Opening: ±28 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V/220 V.
  • Motor: 4 kW.
  • Number of standard die set: 10.
  • Weight: 375 kg.
  • Overall size: 800 mm × 630 mm × 1376 mm.

High Pressure Hose Crimping Machine (Type H)

High pressure hose crimping machine (type H) is designed of self-filling oil cup, which can solve the inconvenience of adding lubricating oil on annular machine. And it is manufactured with large opening and passing ability, because it is mainly used to crimp non-standard high pressure hoses. This kind of hose crimping machine can be divided into two kinds: PLC type and button control type.

The PLC type is controlled by microcomputer, so it has high accuracy and reliability. The button control type is manual and semi-automatic. And it is designed of resin gasket on the die base to protect machine from the damage of debris dropping.

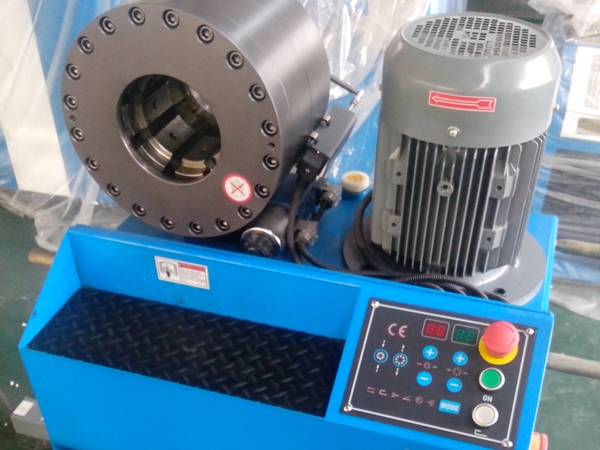

A blue high pressure hose crimping machine (type H) control by microcomputer is on the ground.
High pressure hose crimping machine(type H) PLC type is controlled by microcomputer, so it has high accuracy.

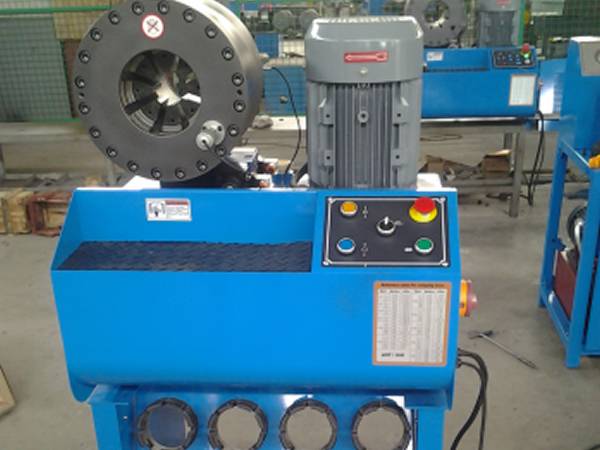

A blue high pressure hose crimping machine (type H) controlled by buttons is on the ground.
High pressure hose crimping machine (type H) controlled by buttons is manual or semi-automatic.

The details of high pressure hose crimping machine (type H) PLC:

  • Crimping force: 530 T.
  • Crimping hose range: 1/8" - 2".
  • Opening without dies: 122 mm.
  • Opening: ±28 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V.
  • Motor: 4 kW.
  • Number of standard die set: 10.
  • Weight: 185 kg.
  • Overall size: 720 mm × 530 mm × 730 mm.

The details of high pressure hose crimping machine (type H) button control type

  • Crimping force: 530 T.
  • Crimping hose range: 1/8" - 2".
  • Opening without dies: 122 mm.
  • Opening: ±28 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V/220 V.
  • Motor: 4 kW.
  • Number of standard die set: 10.
  • Weight: 185 kg.
  • Overall size: 720 mm × 530 mm × 730 mm.

High Pressure Hose Crimping Machine (Type M)

High pressure hose crimping machine (type M) is almost similar to high pressure hose crimping machine (type H). It can also be divided into two kinds: PLC type and button control type.

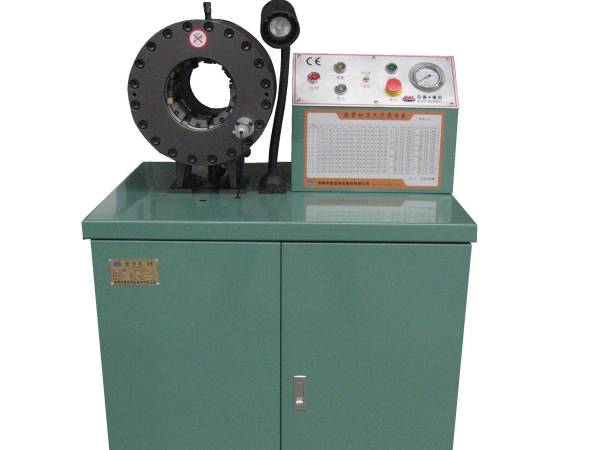

A green high pressure hose crimping machine (type M) PLC type.
High pressure hose crimping machine (type M) controlled by microcomputer.

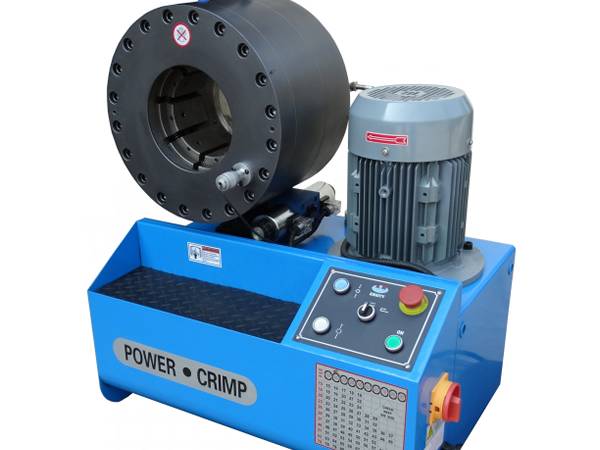

A blue high pressure hose crimping machine (type M) controlled by buttons.
High pressure hose crimping machine (type M) controlled by buttons.

The details of high pressure hose crimping machine (type M) PLC type

  • Crimping force: 530 T.
  • Crimping hose range: 1/8" - 3".
  • Opening without dies: 168 mm.
  • Opening: ±26 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V.
  • Motor: 4 kW.
  • Number of standard die set: 10.
  • Weight: 185 kg.
  • Overall size: 800 mm × 635 mm × 1390 mm.

The details of high pressure hose crimping machine (type M) button control type

  • Crimping force: 530 T.
  • Crimping hose range: 1/8" - 3".
  • Opening without dies: 168 mm.
  • Opening: ±26 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V.
  • Motor: 4 kW.
  • Number of standard die set: 10.
  • Weight: 185 kg.
  • Overall size: 720 mm × 530 mm × 730 mm.

High Pressure Hose (4SP) Crimping Machine

High pressure hose (4SP) crimping machine can be divided into two kinds: PLC type and button control type. The PLC type is controlled by microcomputer, so it has advanced operating system and accurate repeated precision. It is equipped with adapter, which can protect dies from the failing installation. The button control type has two grade speed and it has no axial displacement. And it supports the whole mold dismantlement.

There is one high pressure crimping machine displayed on the picture.
High pressure crimping machine in blue color.

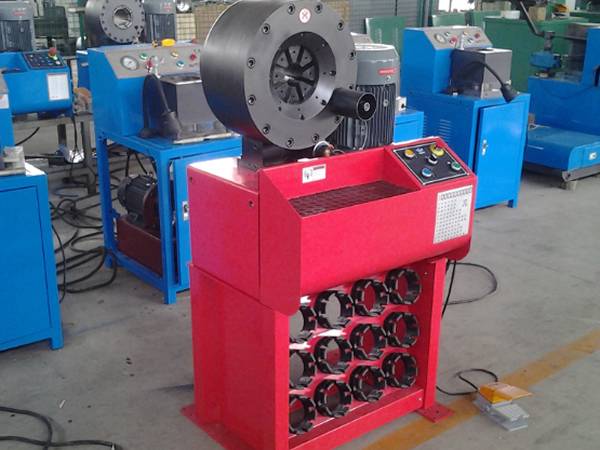

A red and several blue high pressure hose (4SP) crimping machines controlled by buttons are on the ground.
High pressure hose (4SP) crimping machine (button control type) no axial displacement.

The details of high pressure hose (4SP) crimping machine:

  • Crimping force: 340 T.
  • Crimping hose range: 1/8" - 2-1/2" or 4".
  • Opening without dies: 160 mm.
  • Opening: ±38 mm.
  • Systematic pressure: 30 MPa.
  • Voltage: 380 V/220 V.
  • Motor: 4 kW.
  • Number of standard die set: 16.
  • Weight: 269 kg.
  • Overall size: 720 mm × 530 mm × 820 mm.

If you need to consult the price, please contact the business department by E-mail:

sales@hosecrimpingmachinery.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
