Use hydraulic hose crimping machines for hydraulic hose assembly

Hydraulic hose crimping machine also called hydraulic hose crimper, is used for crimping hydraulic hoses. Our hydraulic hose crimping machines are designed to accord with various hydraulic hoses to make assemblies without any difficulty. Our hydraulic hose crimping machines include high pressure hydraulic hose crimper and mini automatic hydraulic hose crimping machine. High quality hose crimping machine is vital to mechanical engineering, so it's important to choose a qualified machine according to the method to identify hose crimping machines quality offered by us.

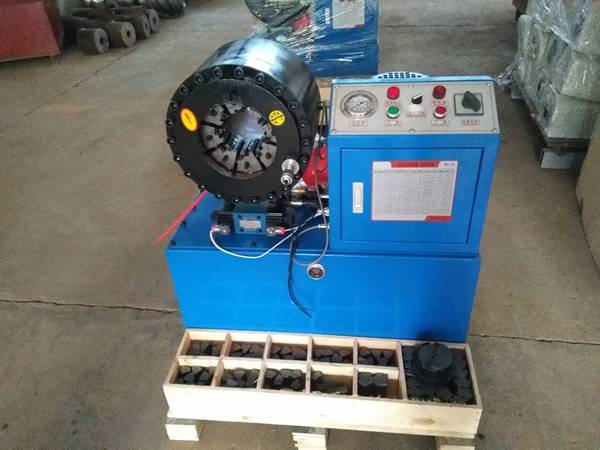

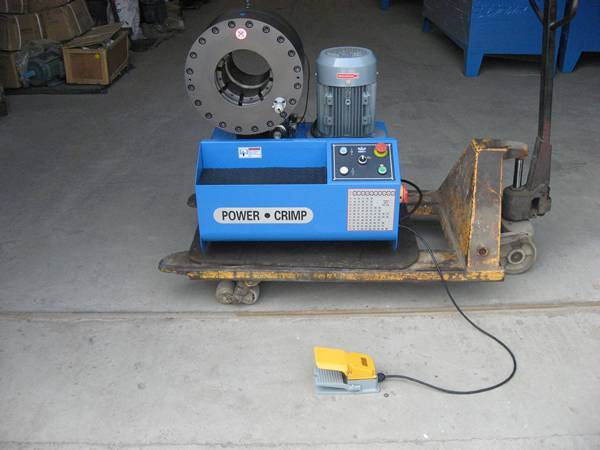

High pressure hydraulic hose crimping machine

High pressure hydraulic hose crimping machine
Hydraulic hose crimping machine used for high pressure hydraulic hoses

The high pressure hose crimping machine is often seen in the heavy duty mechanical engineering and hydraulic systems of industrial field. And it finds its applications for crimping two-way bends, esp. large bends and non-standard hose assemblies.

Features and benefits:

  • Nice appearance, small and portable.
  • Equipped with big force, easy to operate.
  • Low noise, quick operation.
  • Adjustable crimping amount, low cost.
  • Even mould base division.

Technical parameters:

Items Specifications
Hose range 6-51mm (I.D.)
Max. crimping force 400T
Scale accuracy 0.02mm
Oil pump pressure 31.5Mpa
Oil pump displacement 5ml/rad (380V) or 2.5ml/rad (220V)
Overall dimensions 670(L)×490(W)×780(H) mm

Mini automatic hydraulic hose crimping machine/crimper

Mini automatic hydraulic hose crimping machine
Portable hydraulic hose crimping machine in green color used for hydraulic hoses

Mini automatic hydraulic hose crimping machine or hose crimper is also called portable hydraulic hose crimping machine. It is used for crimping one-wire and two-wire hoses whose inner diameters range from 4mm to 27mm. It is very light and easy to handle. It is especially used in wild fields and other conditions where heavy duty machines are not suitable.

Technical parameters:

Items Specifications
Hose range 4-27mm (I.D.)
Max. crimping force 150T
Die Opening & Closing +/-20mm
Oil pump pressure 20Mpa
Oil pump displacement 5ml/rad (380V) or 2.5ml/rad (220V)
Overall dimensions 600(L)×500(W)×300(H) mm
Motor power 1.5KW
Operating voltage 380 (220)V
Dies 4 sets
Die no. and length 16(65), 20(65), 24(65), 28(75)mm
Weight 80kg

Finished products:

There are seven hydraulic hoses that are displayed, each of them has metal connectors.
Seven hydraulic hoses made by hydraulic hose crimper.
There are seven hydraulic hoses with metal connectors that are displayed.
Seven hydraulic hose assemblies finished products.

If you need to consult the price, please contact the business department by E-mail:

sales@hosecrimpingmachinery.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
