Hose Cutting Machine – Pneumatic & Mini Type

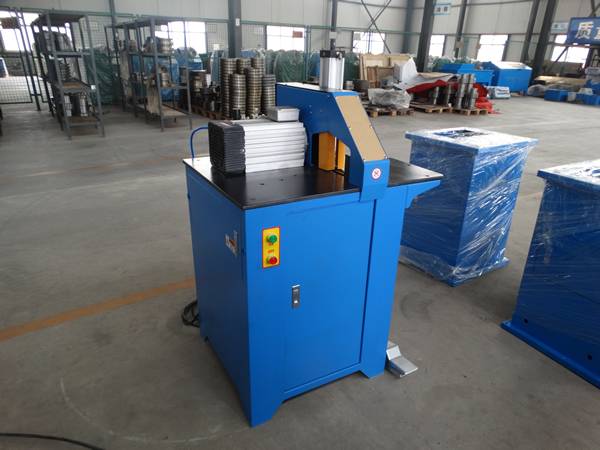

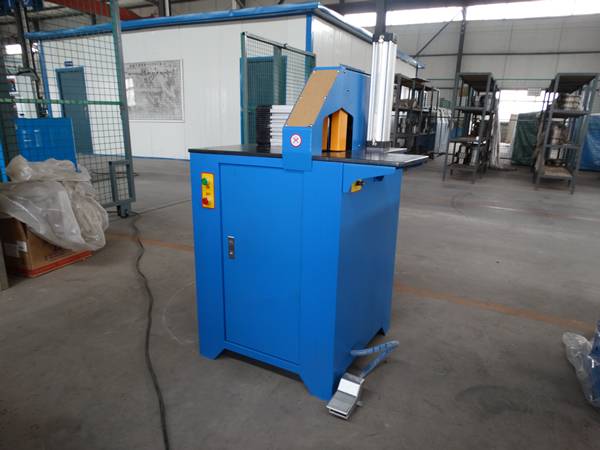

Hose Cutting Machine (Pneumatic Type)
Hose cutting machine is designed for cutting hydraulic hoses with 1, 2 or 4 braids of up to 2" in diameter. It is widely used for series production of hydraulic hose assembles.
Pneumatic hose cutting machine is used for braided hose cutting
Pneumatic hose cutting machine is available for up to 2" hoses cutting
Features
- Imported cuttings blade, high intension and long lifetime, and possessing the function of compensating wearing of cutting blade.
- Hose cuttings speeding can be stepless regulated.
- Extracting fume and smoke, environment protection and health.
- Cutting blade has a function of automatic atomization and cooling, suitable for continuous operation.
- Special motor and cutting blade has good stability
Specifications:
- Maximum hose outside diameter: 80 mm
- Operated by: three-phase 5.5 kW motor 220V/380V
- Pneumatically operated min. 6 bar
- Standard cutting blade: 350 mm
- Blade type: smooth (a toothed blade can also be used)
- Hose is pneumatically pushed against the blade
- Three-grade cutting speed
- Weight: 163 kg

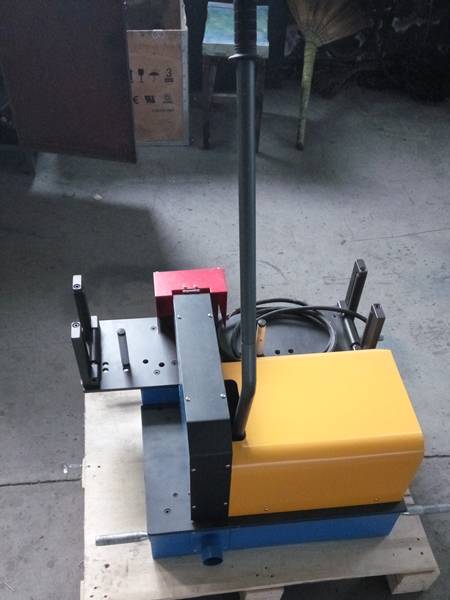

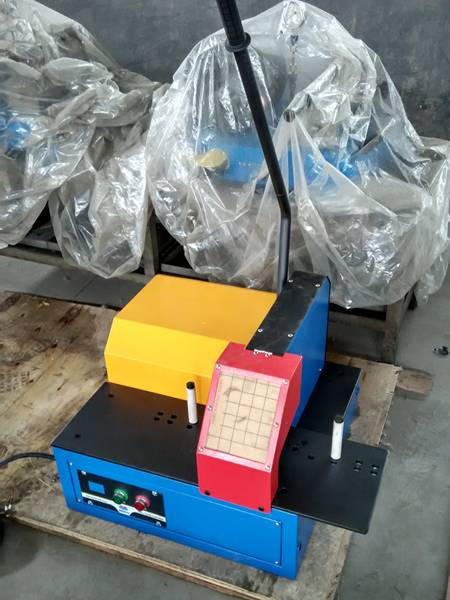

Mini Hose Cutting Machine
A cutting machine developed to cut hydraulic hoses with 1 or 2 braids of up to 2” in diameter and with 4 braids of up to 1-1/4” in diameter. Designed for workshops and service vans.
Mini cutting machine is space saving and efficient
Mini cutting machine is available for up to 1-1/4 inch braided hydraulic hoses cutting
Features:
- Imported cuttings blade, high speed, long lifetime
- Special motor, work steady
- Bend hose before cuttings in order to avoid clamp blade
Specifications:
- Maximum hose outside diameter: 80 mm
- Operated by: three-phase 3 kW motor, 380V
- Speed of revolutions: 2880 r.p.m.
- Standard cutting blade: 350 mm
- Blade type: smooth (a toothed blade can also be used)
- Weight: 95 kg
